Patio · Hinged
Full Lite Hinged Patio Door
Two hinged panels, glazed edge to edge, bored for the hardware you choose.
In stock at Lowe's, in store and online. Fifty-nine configurations: the widest range of any door in the line.
Where to buyFull specification
- Ball-bearing hinges on both panels, the swing stays smooth, the panel keeps closing flush.
- 0.29 U-Factor across all 59 configurations, the same figure in every glass style and both finishes.
- Double-bored for the hardware you choose, no handle fitted, nothing to drill.
A patio door earns its keep on one day
The day both panels swing wide at once.
A warm evening arrives, or a table needs to move outside, and both panels open into a single span the width of the wall.
That is the moment a hinged door either performs or does not: the hinges carry the full weight through the arc, the seal still closes true when the panel comes back to rest, and the frame has not shifted since the day it was hung.
Two hundred fifty pounds a panel
Swinging on the same arc for years.
Ball-bearing hinges carry the load, so the panel keeps closing flush to the frame instead of sagging at the latch side over time.
Certified performance
A U-Factor that holds across fifty-nine configurations
The largest opening in an exterior wall is where heat moves fastest. These figures hold in both finishes and every glass style.
0.29
U-Factor1The rate of heat loss. The same figure whether the panel is glazed clear or with a grille pattern.
0.24
Solar heat gain1On 41 of 59 configurations; 0.41 on the other 18. Lower means less solar heat enters.
PG55
Outswing rating2Structural load the assembly withstands, PG40 inswing, PG55 outswing, tested apart.
59
ConfigurationsTwo sizes, four glass styles, two finishes, four handings, the widest range in the line.
01 · The hinges
Ball-bearing hinges, not just hinges
Two hundred fifty pounds a panel, swinging on the same arc for years.
A standard hinge wears at the pin under repeated load. A ball-bearing hinge carries that load on bearings rather than bare metal, so the swing stays smooth and the panel keeps closing flush to the frame instead of sagging at the latch side over time.
Both panels use them, on every configuration in this line.
02 · The hardware
Bored for the hardware you choose
No handle arrives fitted. That is deliberate, not an omission.
A hinged patio door is typically finished with hardware chosen to match the rest of the home, so this line ships without a handle or lockset, and with each panel already double bored to receive them.
Nothing further needs to be drilled; the hardware itself is the only thing still to source. Available in White and, across a portion of the range, Black.
03 · The seal
A seal built to close the same way twice
Weatherstripping that brushes past a frame wears thin. This one is squeezed.
Compression weatherstripping closes against the frame under pressure rather than sliding past it, so it presses tighter with use instead of wearing down.
Behind it sits a polyurethane foam core, and around the whole assembly a full composite frame that holds true through a humid summer and a hard freeze without swelling or shrinking.
The same door, four readings
Choose the glass, not the door
Clear, divided light and grilles read differently across the same edge-to-edge glazing. Blinds-between-glass adds a sealed shade.

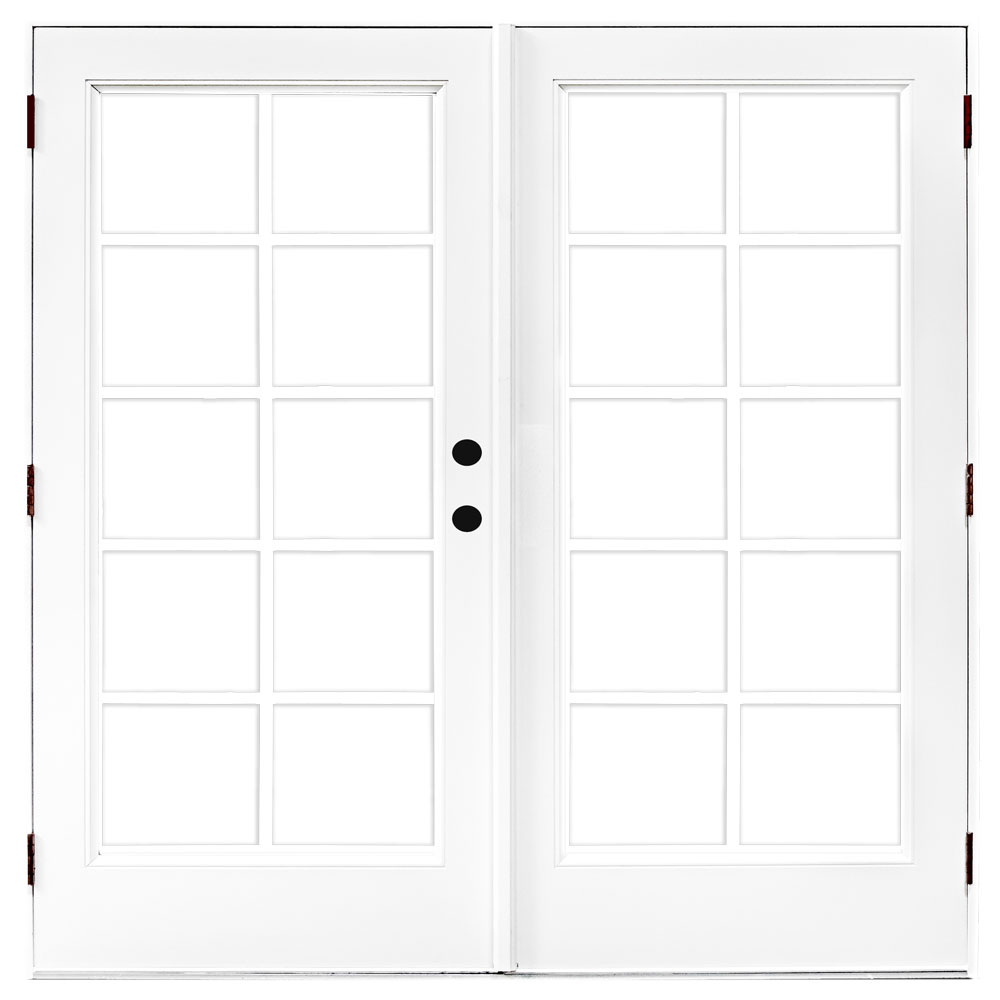

Grilles between the glass
A visible grid sealed inside the unit, with no bar to clean.

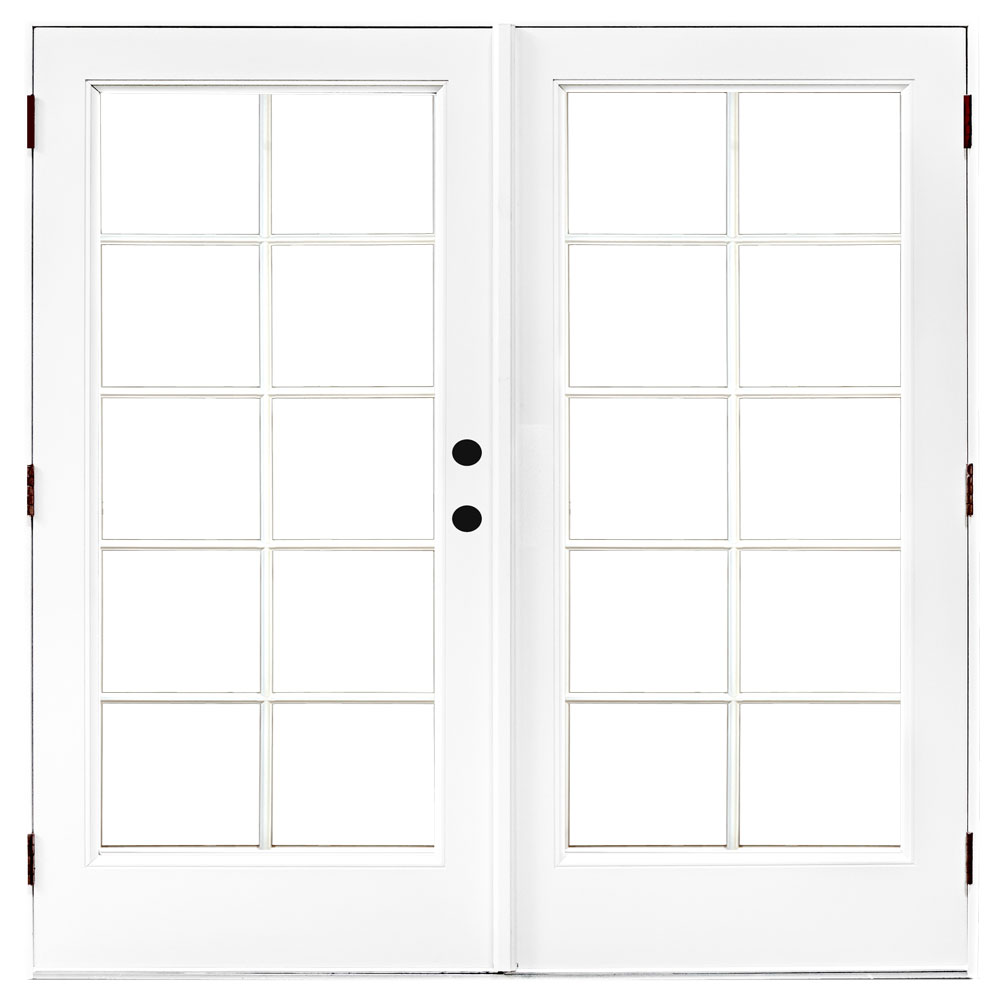

Simulated divided light
Surface-mounted bars for a deeper, traditional profile.

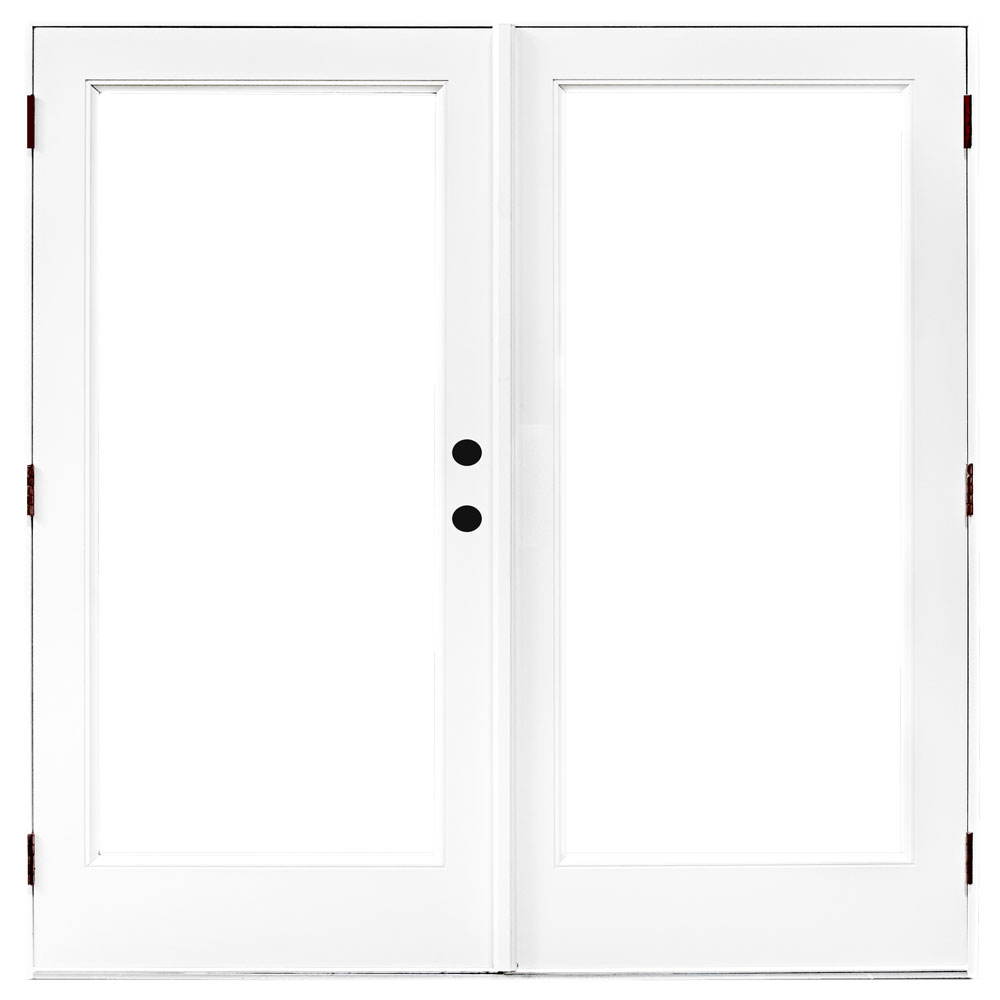

Clear glass
Full-lite panels, glazed edge to edge, uninterrupted.

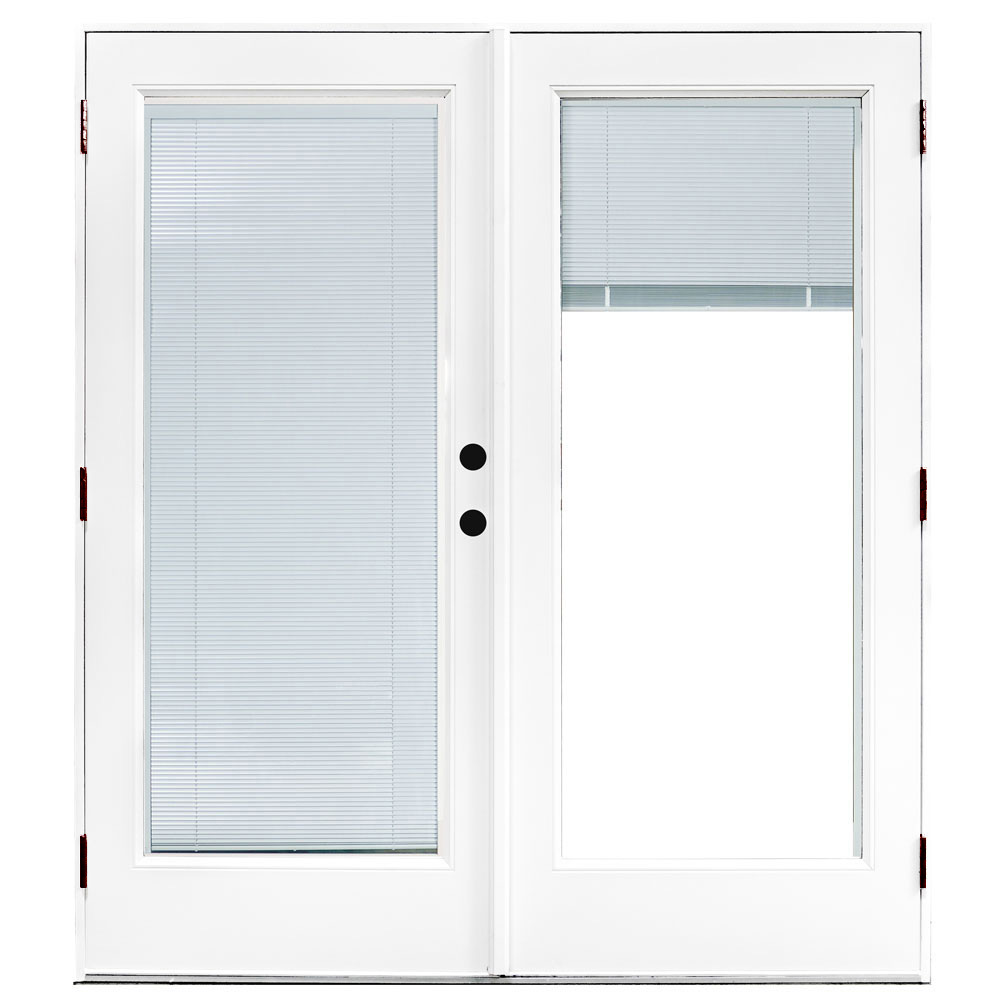

Blinds between the glass
A shade sealed inside the cavity, its own warranty and thermal figures.
In the crate
It arrives prehung, ready for the opening
Set in a jamb 5.75 inches deep, weatherstripping already fitted; each panel weighs 250 pounds fully glazed and is double bored for hardware.
- 01Both panels, glazed and hung in the frame, on ball-bearing hinges
- 02Double-bored panels, for your chosen handle and lockset (not included)
- 03Compression weatherstripping, installed
- 04Confirm handing & swing, inswing/outswing, left/right, before ordering
Not in the crate: handle and lockset, brickmould, a screen and a pet door are not part of the standard unit and are specified separately.
The complete record
Specifications
Fifty-nine configurations across two sizes, four glass styles, two finishes, and four handings.
Construction
Performance & configuration
- 1U-Factor 0.29 applies to all 59 configurations. SHGC is 0.24 on 41 of the 59 and 0.41 on the other 18.
- 2Structural inswing PG40 (FBC 18583.1); outswing PG55 (FBC 18583.2, exact citation pending). NFRC Gold NAMI 20620; PG Gold labels 13287 / 14457.
- 4Visible Transmittance 0.41 / 0.45 is drawn from a source document pending a brand-correct reissue and is not yet confirmed for publication.
Backed, tier by tier
Coverage stated in full, glass by glass
Shown for an owner-occupied, single-family home.3
Coverage is for parts, not labour. Claims are raised through the retailer of purchase. Void above 4,000 feet elevation, and may be void if the factory finish is repainted below LRV 57.3
Always within reach
One door. Fifty-nine configurations. One retailer.
In store and online at Lowe's, no special order, no regional variant, no wait.
Where to buy
